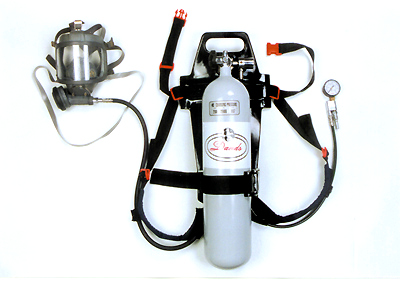

• The best self positive pressure breathing apparatus
• A quality product manufactured under strict quality control and designed by world class R&D.

FACE PIECE

• A face piece made of superior natural rubber mix or silicon.
• Having visor made of superior Markolone or Lexan.
• Comfortable 5 strap head harness for precise adjustment.
• Wide soft sealing edge is pressed lightly against  the face by the positive pressure providing firm effective seal.
• Soft inner mask: design to minimize dead space.
• Visibility at all times.
• The anti fogging ports keep the inside of the visor clear and cool.

DEMAND VALVE

• The demand valve is tough automatic positive pressure at flow rates up to 450lts. per minute which provide extra safety.
• Protected exhalation ports
• Fast response time for unique tow channel system.

BACK PLATE / HARNESS

• The set is back mounted on a ergonomically and ribbed designed back plate made of FRP so that to restrict radiant heat burns. Totally chemical and corrosion resistant.
• It features a 40mm wide harness with Delrine quick lock buckles which do not restrict the user when crawling.
• The back plate is designed to support a wide range of cylinders  from 115mm to 215mm dia.
• Adjustable cylinder clamps.

REDUCING VALVE

• An adjustment free piston reducing valve reduces the cylinder pressure to 9 bar.
• The Reducer features a pressure relief valve which in the unlikely event of there being a failure in the reducer assembly prevents access pressure reaching the demand valve.
• The valve also incorporated a chemical sintered filter which gives a large surface for filtering the incoming air and as a result less of a resistance to the air flow

HIGH / MEDIUM PRESSURE HOSE

• High pressure hose is made of a Braided Stainless Steel.
• The medium pressure hose made of superior rubber.

PRESSURE GAUGE / WHISTLE ASSEMBLY

• The pressure gauge is mounted in a stainless steel case covered with thick rubber shroud.
• The warning whistle is operated exceeding 90db when 80% of the air is consumed.
• The pressure gauge and whistle assembly is mounted on the left shoulder strap to monitor the cylinder pressure at all times. Activation of the whistle can be easily detected by the wearer.

CYLINDER / VALVE ASSEMBLY
