RESPIRATORY  PROTECTION - I

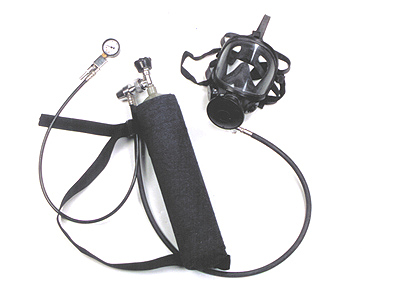

SAVIOUR ESCAPE

FACE PIECE

  • A face piece with superior natural rubber mix or silicon
  • Having visor made of superior Markolone or Lexan
  • Comfortable 5 strap head harness for precise adjustment
  • Wide soft sealing edge is pressed lightly against the face by the positive pressure providing firm effective seal
  • Soft inner mask: design to minimize dead space
  • Visibility at all times
  • The anti fogging ports keep the inside of the visor clear and cool

DEMAND VALVE

  • The demand valve is tough
  • Protected exhalation ports
  • Fast response time for unique tow channel system
  • Easy breathing work, regardless of secondary pressure or work load, due to unique breathing valve balancing systems

SHOULDER STRAP

  • A cylinder carrying by assailing under the arm where the cylinder valve and constraint reading pressure gauge are readily accessible.
  • A unique way to enable a person to escape from minimum available space.
  • Makes it extremely lightweight.

REDUCING VALVE

  • An adjustment free piston reducing valve reduces the cylinder pressure
  • The reducer features a pressure relief valve which in the unlikely event of there being a failure in the reducer assembly prevents access pressure reaching the demand valve.
  • The valve also incorporated a chemical sintered filter which gives a large surface for filtering the incoming air and as a result less of a resistance to the air flow

HIGH / MEDIUM PRESSURE HOSE

  • High pressure hose is made of a braided stainless steel.
  • The medium pressure hose made of superior rubber.

PRESSURE GAUGE / WHISTLE ASSEMBLY

  • The pressure gauge is mounted in a stainless steel case covered with thick rubber shroud.
  • The warning whistle is operated exceeding 90db when 80% of the air is consumed.
  • The pressure gauge and whistle assembly is mounted on the left shoulder strap to monitor the cylinder pressure at all times. Activation of the whistle can be easily detected by the wearer.

CYLINDER / VALVE ASSEMBLY

LITERS CAPACITY BAR DURATION
(MIN.)
APPROVAL
4 200 20 IMPORTED CCE
